Bosch πυρανίχνευση FCP500-2

Bosch FCP-500 detectors are equipped with two optical sensors and a contamination sensor. All sensor signals are constantly analyzed by the internal signal electronics through specially developed algorithms. Multiple criteria optical sensors results in an extremely high tolerance to unwanted alarms. Consequently, the detector can be used in areas with small amounts of non-fire-related smoke, steam, or dust.

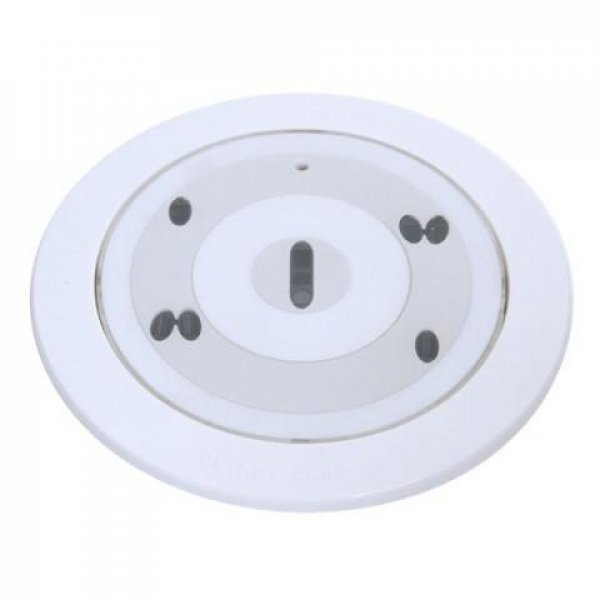

Bosch FCP-500 Conventional Flush-mount Smoke Detector is an open area photoelectric smoke detector. It is ideal for use with signaling systems and household fire warning systems. Bosch FCP-500 smoke detectors come with sensor technology (two optical sensors and a contamination sensor) and signal processing. All sensor signals are constantly

Features

Scattered light measurement detection principle
Drift compensation
Polycarbonate material
Alarm output through FCA-500 base
Alarm relay rating 1A @ 30VDC
2 sec Reset time
Two color LED
Current consumption
Alarm: 47mA
Standby: 3.5mA
9.7 - 30VDC Four-wire operating voltage
0 to 38°C Operating temperature
