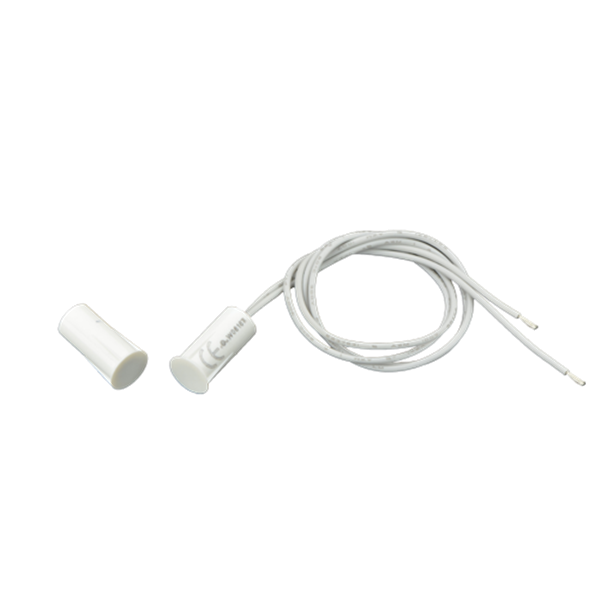

Μαγνητική παγίδα Ø9,5x19mm λευκή ISN-CMINI Bosch

 Τεχνικές προδιαγραφές

COMPACT CONTACTS
Contact, 9.5 MM ( 3/8"),

Closed loop
Sensitive non-stick rhodium reed
Bent long leads keep solder off the glass of the reed
Two solder points on the wire
Thick plastic shell resists crushing

Συσκευάσια pack 10 σετ πωλείται ανα 1 σετ.

Specifications

Digestive support.

Maximum operating voltage in VDC 100
Maximum conductive current in A 1
Maximum contact rating in W 10
Maximum initial contact resistance in mΩ 100
Switch configuration type Single pole single throw (SPST)
Maximum switching voltage in VAC/VDC 110/100
Maximum switching current in A 0.5

Dimensions 9.60 mm X 19mm.
Gap width in cm 1.5
Dimension in cm (Ø x D) (contact) 096 x 19mm
Dimension in cm (Ø x D) (magnet) 0.9 x 1.9
Cable type 22 AWG leads standard
Cable length in cm 30.5

Maximum opening 12.7mm.

Color White

Minimum operating temperature in °C -40
Maximum operating temperature in °C 60
Minimum operating temperature in °F -40
