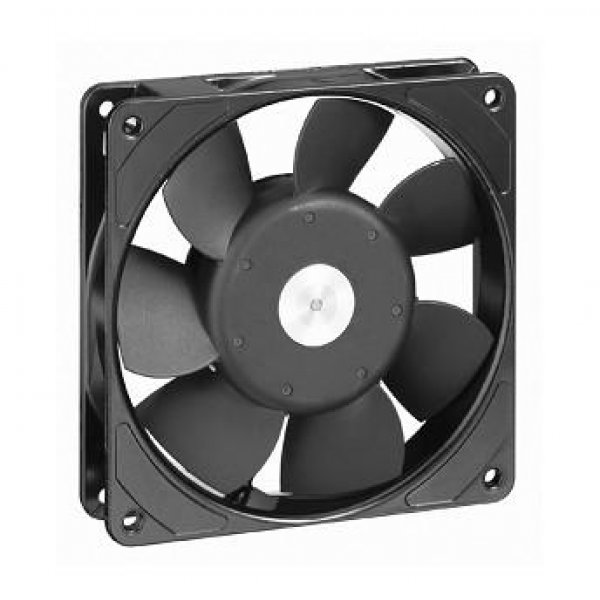

Ανεμιστήρας 24V DC 119x119x25mm ebmpapst 4414FM

Technical description

General description Particular design features: Ball bearings and sleeve bearings available. Open loop speed control on request. Tachometer and alarm on request. General features: Material: fibreglass-reinforced plastic. Impeller PA, housing PBT. Electronic commutation completely integrated. Protected against reverse polarity and locking. Connection via single strands AWG 24, TR 64, bared and tin-plated. Air exhaust over bars. Direction of rotation counter-clockwise seen on rotor. Mass: 175 g.

Mass 0.175 kg
Dimensions 119 x 119 x 25 mm
Material of impeller Fiberglass-reinforced PA plastic
Housing material Fiberglass-reinforced PBT plastic
Direction of air flow Air exhaust over bars
Direction of rotation Left, looking at rotor
Bearing Ball bearings
Lifetime L10 at 40 °C 70000 h
Lifetime L10 at maximum temperature 30000 h
Connection line Single strands AWG 24, TR 64, bared and tin-plated.
Motor protection Protected against reverse polarity and locking.
Locked-rotor protection Blocking and overload protection
Approval VDE, CSA, UL, CE
Nominal voltage VDC 24
Nominal voltage range VDC 12 .. 28
Speed min -1 2400
Power input W 3.2
Min. ambient temperature °C -20
Max. ambient temperature °C 75
Air flow m3/h 140
Sound power level B 4.8
Sound pressure level dB(A) 38
