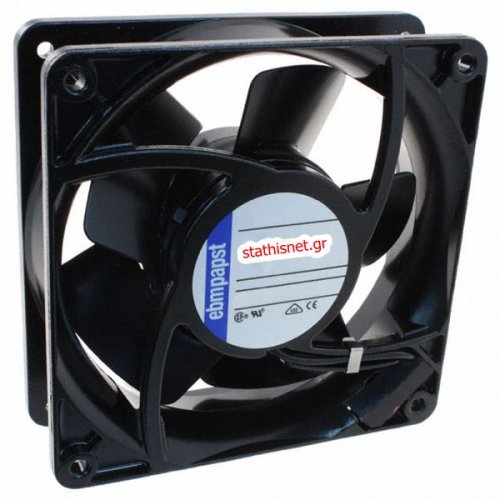

Ανεμιστήρας 230VAC 119x119x38mm 4650Z κουζινέτο EBM-PAPST
Προβολή
Material of impeller Sheet steel, coated in black
Housing material Die-cast aluminium
Direction of air flow Exhaust over struts
Direction of rotation Right, looking at rotor
Bearing Sintec sleeve bearing
Lifetime L10 at 40 °C 37500 h
Lifetime L10 at maximum temperature 30000 h
Connection line 2 flat connectors 2.8 x 0.5 mm. Housing with grounding lug for M4 x 8.
Motor protection Protected from overload using impedance protection
Approval VDE, CSA, UL, CE
Option Available with electrical terminals on single strands that are 310 mm in length.
Nominal voltage VAC 230
Frequency 50Hz
Power input 19.0W
Min. ambient temperature -10°C
Max. ambient temperature 50°C
Air flow 160 m3/h
Sound pressure level 40 dB(A)
Dimensions 119 x 119 x 38 mm
Weight 540 gr
**Με μεταλλικό πλαίσιο και φτερό**
