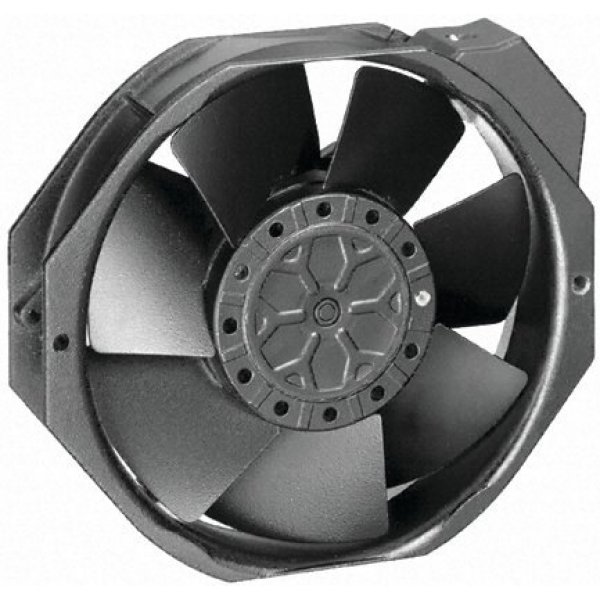

Ανεμιστήρας 230V AC 172x150x38mm 7056ES EBM-Papst

General description

AC voltage fan with external rotor capacitor motor. Protected from overload by integrated thermal switch. Fan housing and fan impeller made of metal. Air exhaust over bars. Direction of rotation counter-clockwise seen on rotor. Electrical connection to 2 flat plugs 2.8 x 0.5 mm. Fan housing with grounding lug and tapping screw M4 x 8 (TORX). Mass 900 g. Please note our new ACmaxx series. With identical fastening dimensions and voltages, this series achieves higher energy efficiency.

Mass 0.900 kg
Material of impeller Metal
Housing material Metal
Direction of air flow Air exhaust over bars
Direction of rotation Right, looking at rotor
Bearing Ball bearings
Lifetime L10 at 40 °C 60000 h
Lifetime L10 at maximum temperature 32000 h
Connection line 2 flat plugs 2.8 x 0.5 mm. Housing with grounding lug and tapping screw M4 x 6 (TORX).
Motor protection Protected from overload by a thermal switch
Approval VDE, CSA, UL, CE
External Height: 150mm
External Width: 172mm
External Depth: 38mm
External Diameter: 172mm
Current Type: AC
Supply Voltage: 230VAC
Flow Rate - Imperial: 194.2cu.ft/min
Flow Rate - Metric: 330m³/h
Noise Rating: 52dBA
Bearing Type: Ball
Power Connection Type: Terminals
Bearing Style: Ball
Depth: 38mm
External Length / Height: 150mm
Flow Rate: 91.5l/s
Noise Figure Typ: 52dBA
Operating Temperature Max: 65°C
Operating Temperature Min: -30°C
Power Consumption: 29W
Supply Voltage Range: 230V AC
Supply Voltage V AC: 230VAC
Voltage Rating V AC: 230V
