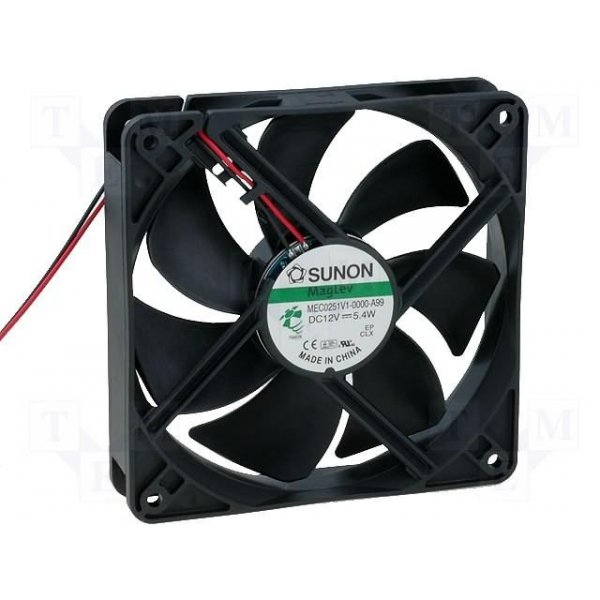

Ανεμιστήρας 12V DC 120x120x25mm MEC0251V1 Sunon
-19%
Προβολή
Τεχνικές προδιαγραφέςSpecification
Fan type DC
Bearing type Vapo
Fans efficiency 183.8m3/h
Noise level 44.5dBA
Supply voltage 12V DC
Power consumption 5.4W
Operating voltage 6...13.8V
Rotational rate/speed 3100 (±10%)rpm
Rated current 0.451A
Current and power consumption tolerance ±15%
Min. insulation resistance 10MΩ
Fan material thermoplastic
Enclosure material thermoplastic
Insulation class A
Operating temperature -10...70°C
Static pressure 7.11mm H2O
Leads 2 leads
Flammability rating UL94V-0
Fan motor brushless DC motor
Cable length 330mm
Wire size 28AWG
Additional functions Autorestart
Fan dimensions 120x120x25mm
Weight 157 gr
Ref Code: 039279
