Access Point Ασύρματο AC 1200Mbps Dual Band Outdoor Omada EAP225-Outdoor TP-LINK

Χαρακτηριστικά

HARDWARE FEATURES

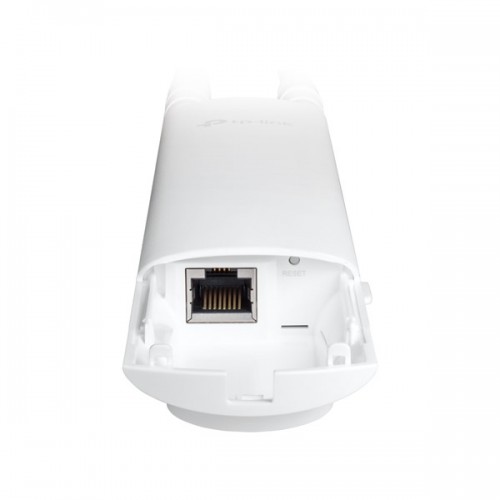

Interface: 1× Gigabit Ethernet (RJ-45) Port (Support 802.3af PoE and Passive PoE)
Button: Reset
Power Supply
• 802.3af/at PoE
• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption: 10.5 W

Antenna
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 4 dBi
Weatherproof Enclosure: IP65
Mounting Pole/Wall Mounting (Kits included)

WIRELESS FEATURES
Wireless Standards: IEEE 802.11a/b/g/n/ac
Frequency: 2.4GHz, 5GHz
Signal Rate:
• 802.11ac: 5G:6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78 Mbps to 300 Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 5.5, 11Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions
• Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control （Adjust Transmit Power on dBm）
• QoS(WMM)
• MU-MIMO
• Seamless Roaming*
• Omada Mesh*
• Airtime Fairness
• Beamforming
• Band Steering
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security
• Captive Portal Authentication*
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
Transmission Power • CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
• FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)

MANAGEMENT
Omada App: Yes
Centralized Management;
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Dimensions ( W x D x H ):
• 215.7×45×37.7 mm (without antenna & mounting kit)
• 403.8×90.7×55.2 mm (with antenna & mounting kit)
